Workflow Editor

Modified on Thu, 27 Feb at 3:03 PM

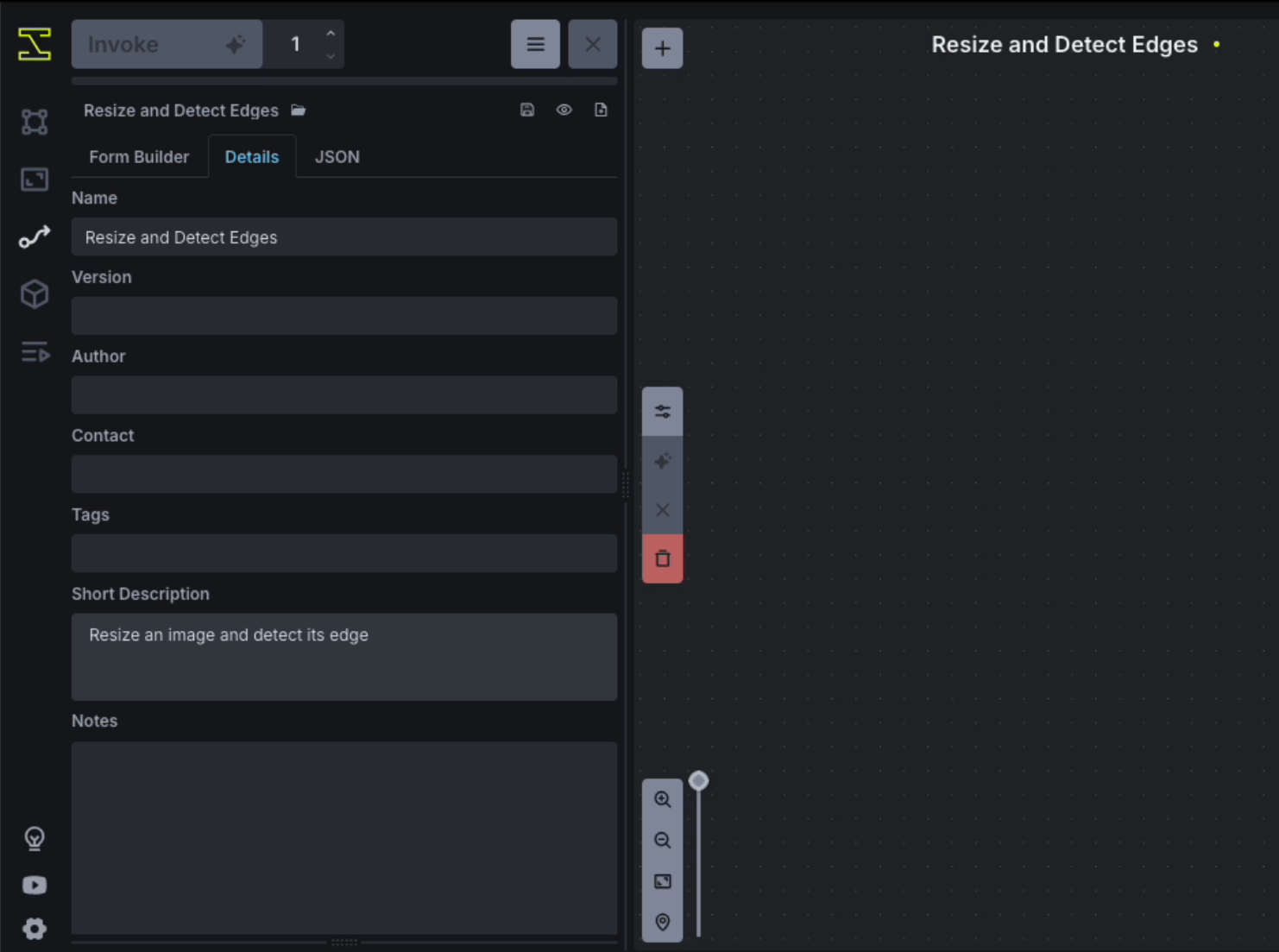

The Workflow Editor is a blank canvas allowing for the use of individual functions and image transformations to control the image generation workflow.

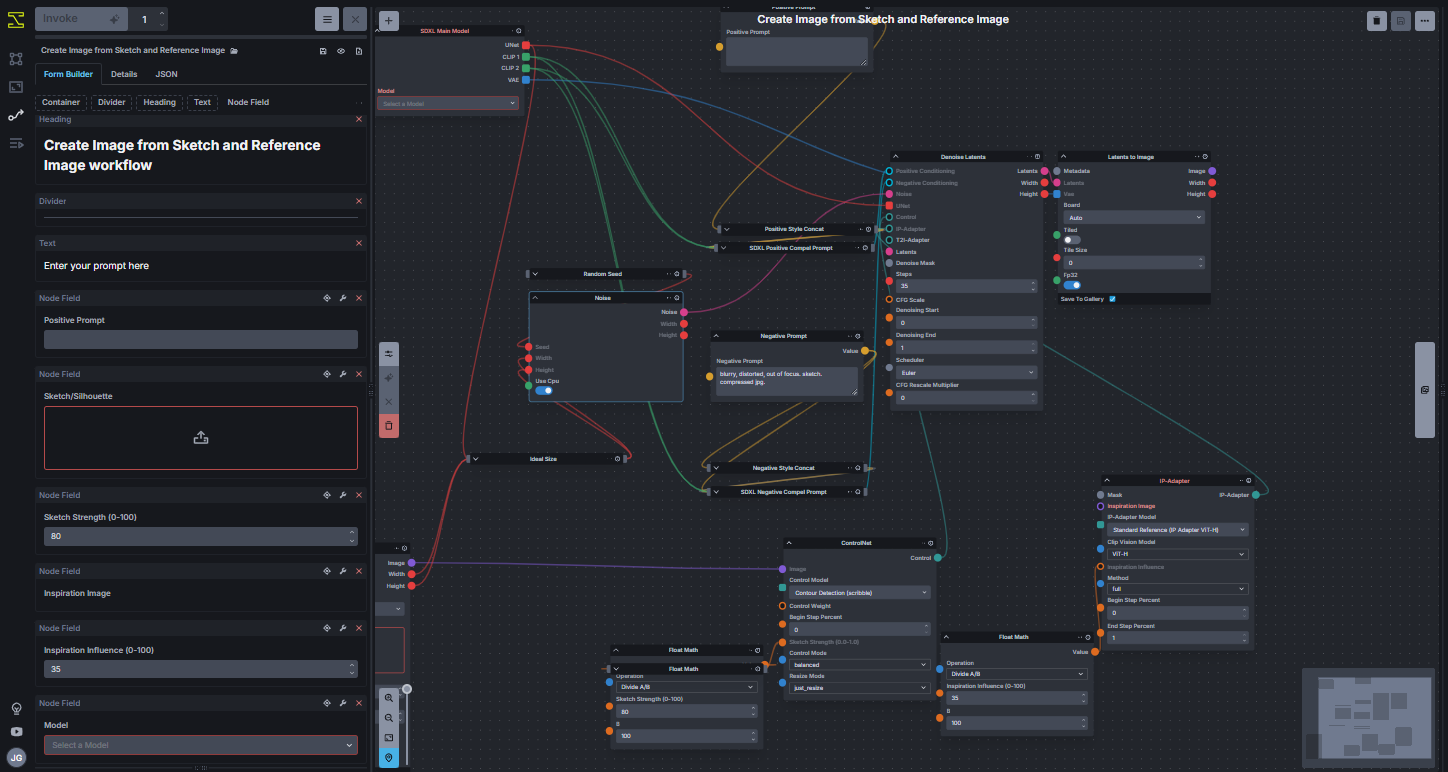

Workflows are composed of nodes, which are connected together to produce the desired generations. Nodes take in inputs on the left side of the node, and return an output on the right side of the node. Nodes' inputs and outputs are connected by dragging connectors from node to node, with inputs and outputs are color coded for ease of use.


Once you have a workflow built, you can expose key fields with a simplified UI using the Form Builder and Linear UI tools.


Form Builder

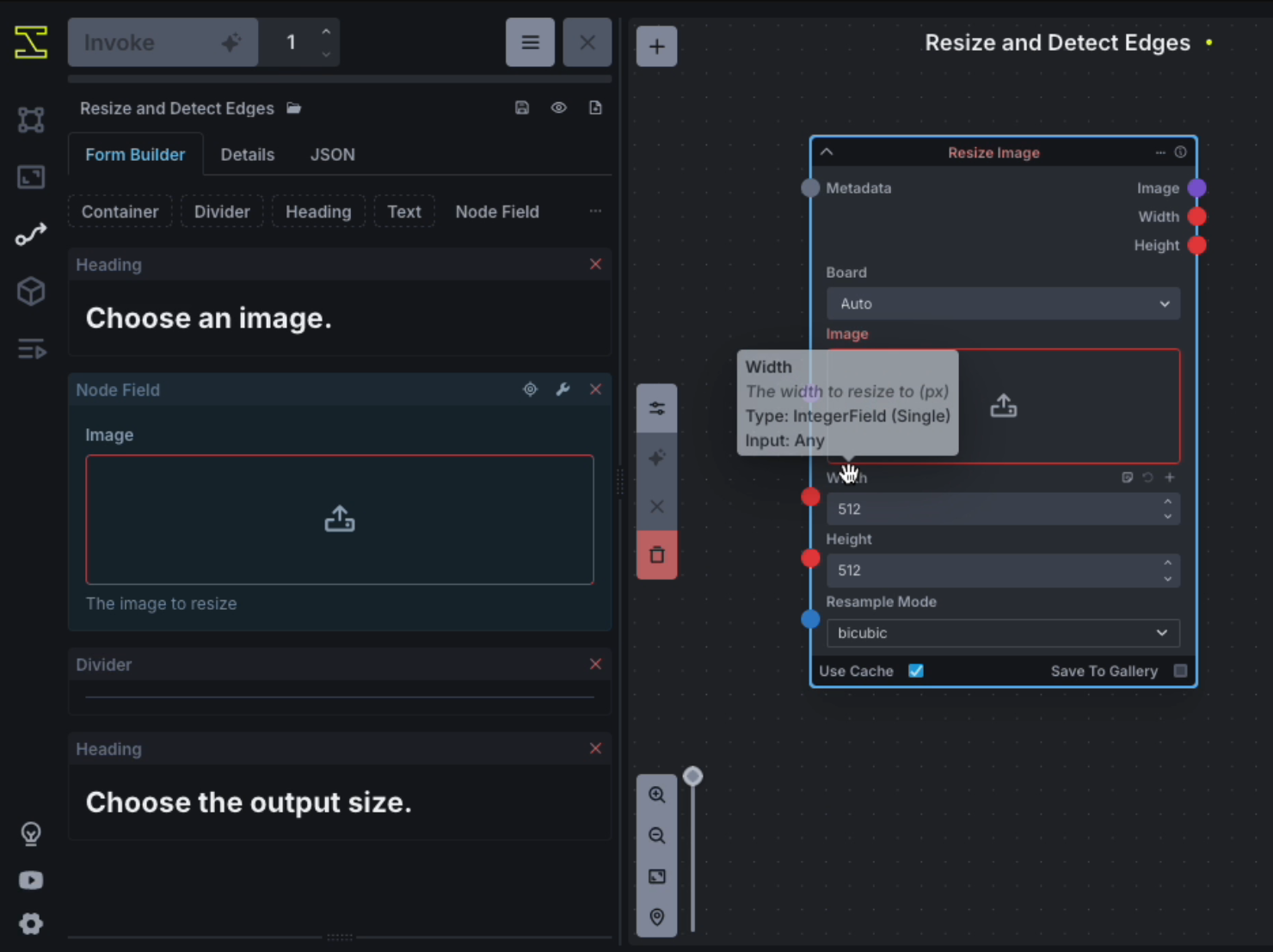

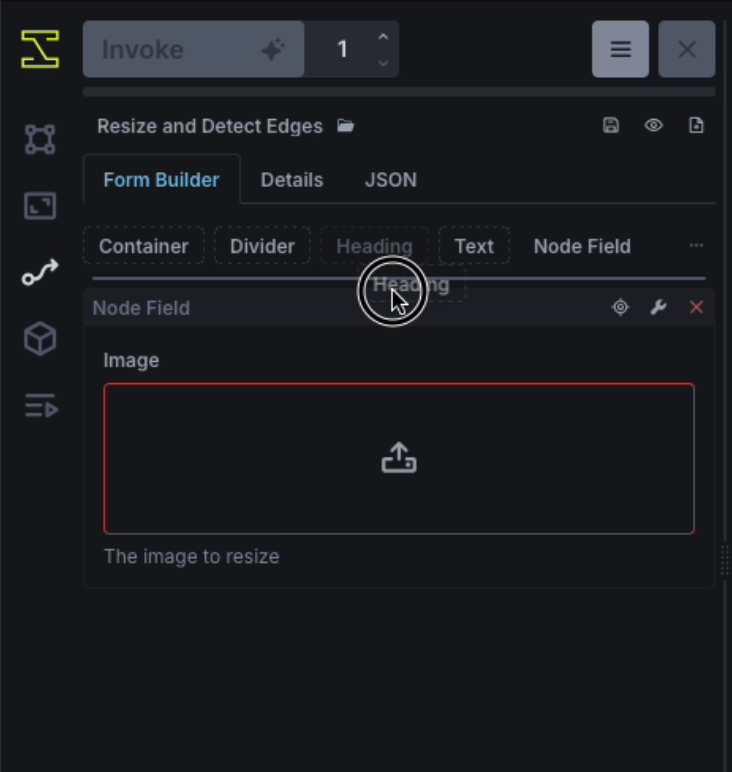

The Form Builder allows you to create a UI for your workflow using a drag-and-drop interface, making it easier to iterate on your generation pipeline and deploy your workflow to other users. By inserting containers, dividers, headers, and text to organize the selected node fields, you can improve the experience of workflow users and isolate key inputs for your workflow.

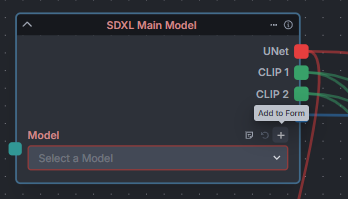

To add a field to your workflow interface, select the '+' icon above the desired node field. From there, you can drag and drop the field into the correct position in the Form Builder panel.

Linear UI View

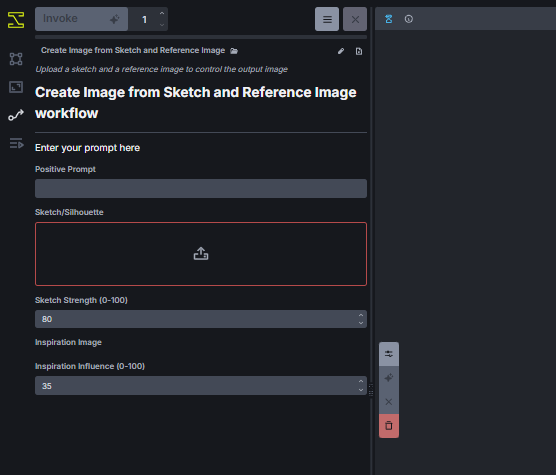

The Linear View allows you display the inputs and UI elements you would like exposed to other users allowing them to use the workflow without being exposed to the complexity behind the scenes.

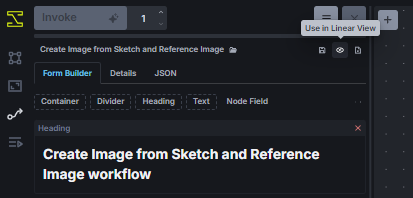

To view your workflow in Linear View, select the eye icon at the top right corner of the workflow builder panel.


Renaming Fields and Nodes#

Any node or input field can be renamed in the workflow editor. If the input field you have renamed has been added to the Linear View, the changed name will be reflected in the Linear View and the node.


Managing Nodes

  • Ctrl+C to copy a node
  • Ctrl+V to paste a node
  • Backspace/Delete to delete a node
  • Shift+Click to drag and select multiple nodes
